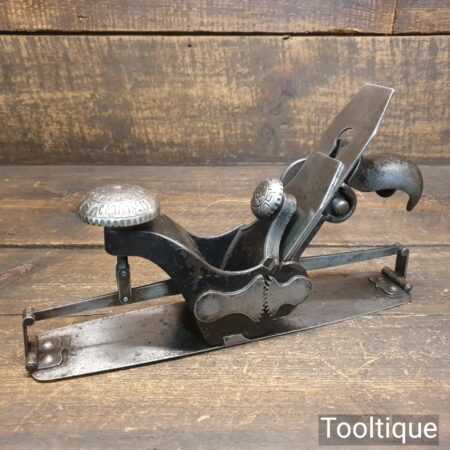

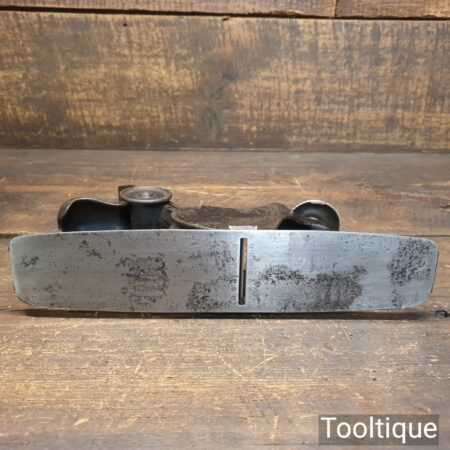

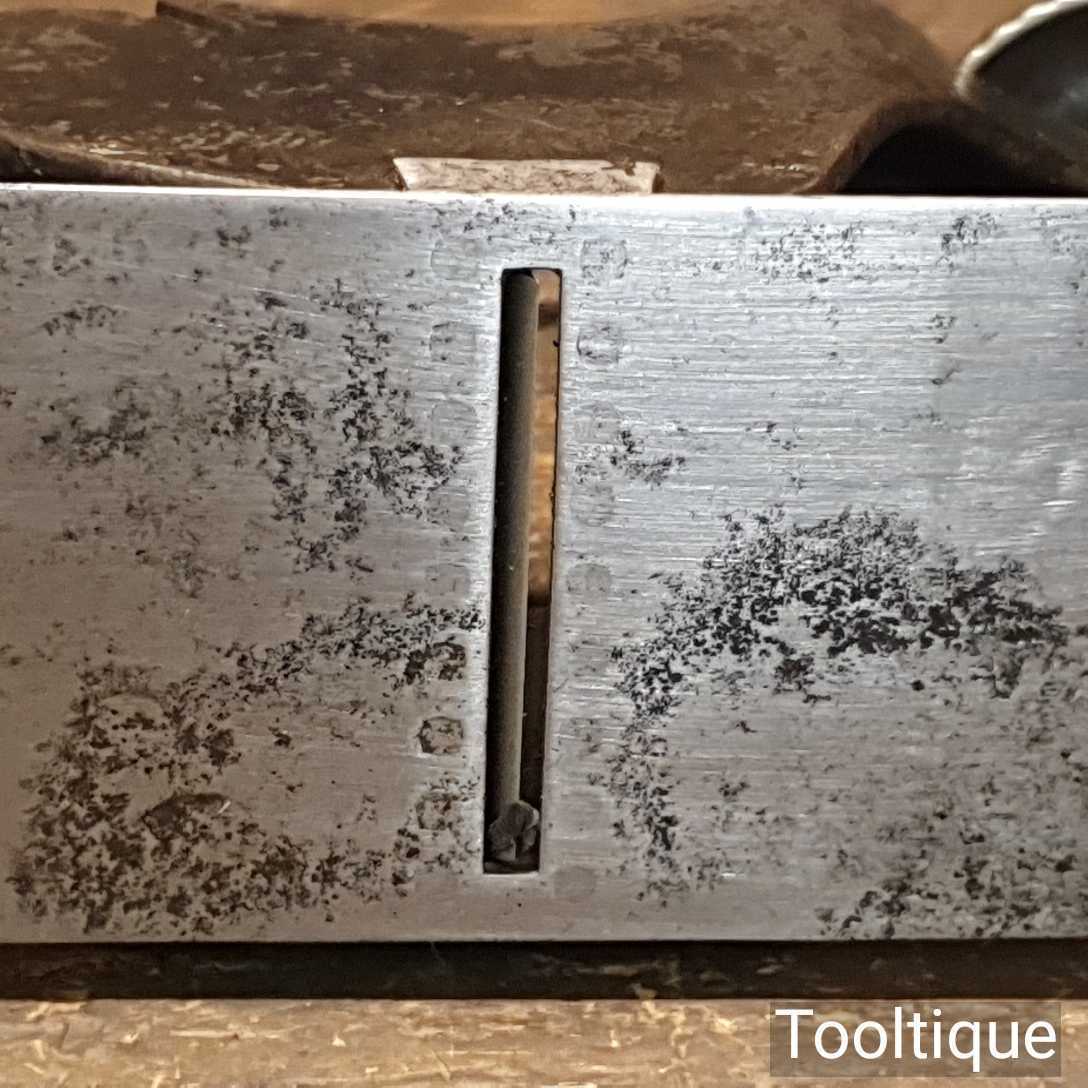

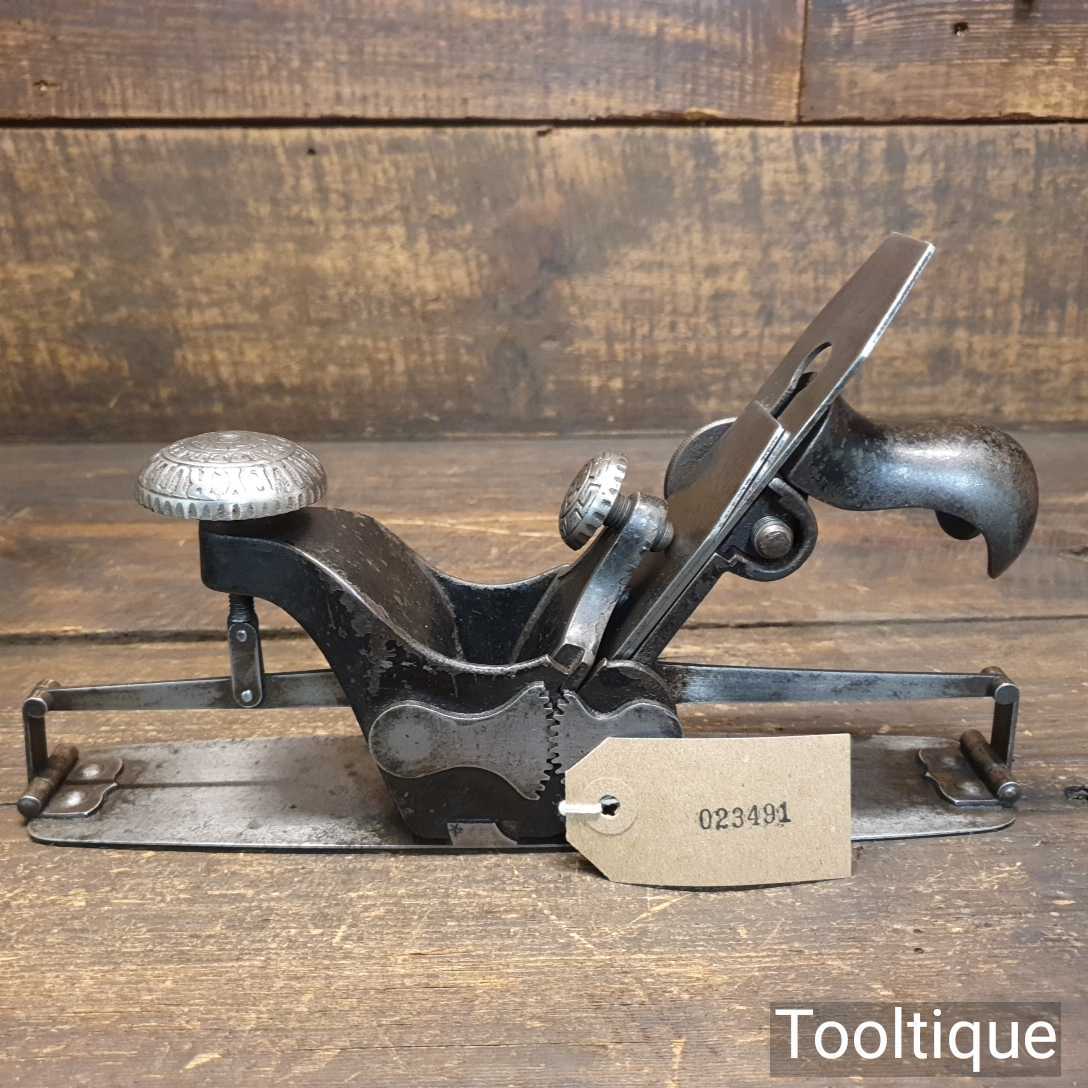

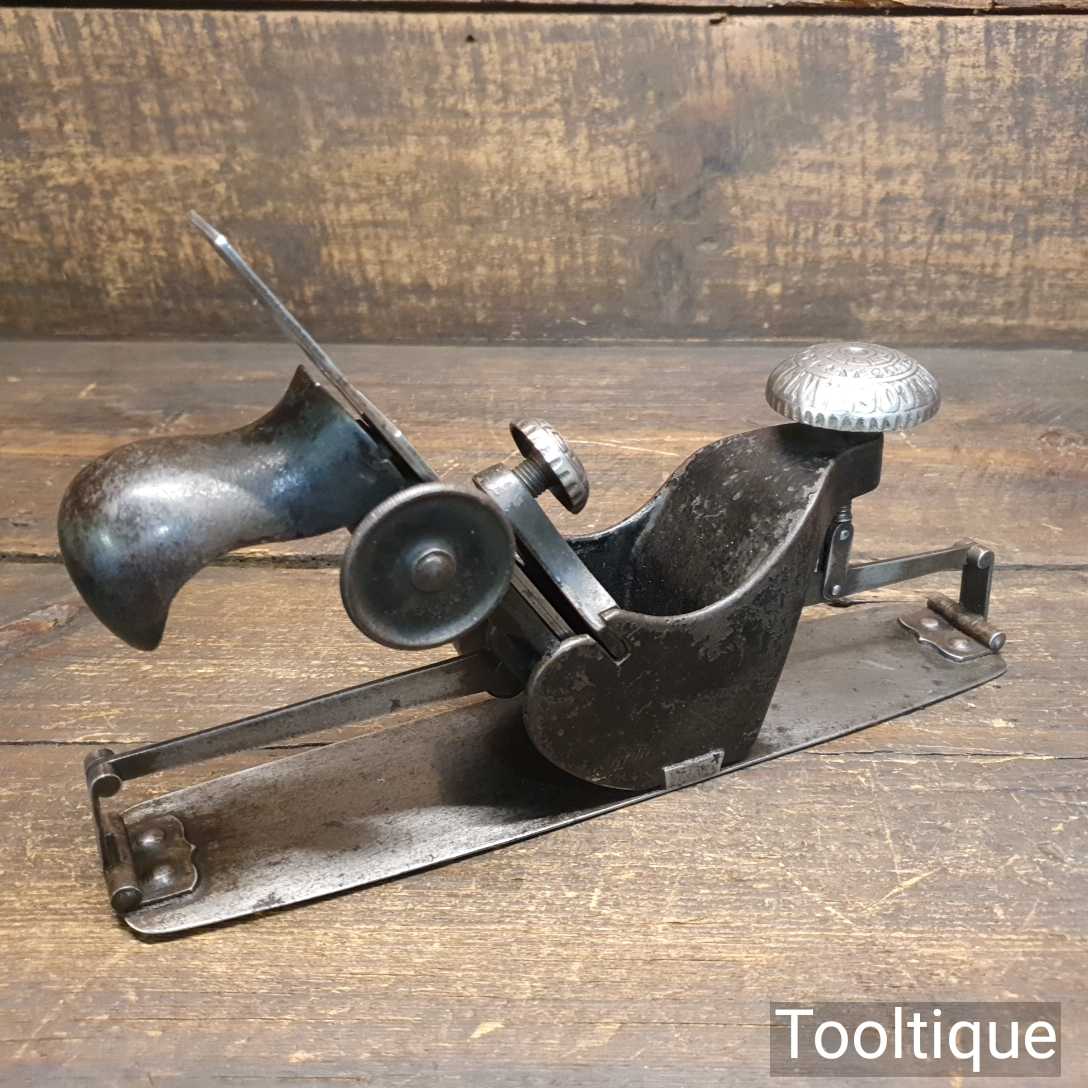

Rare antique Stanley Rule & Level Co. USA Type 1 No: 113 compass plane with original iron, fully refurbished and sharpened ready for use and in good used condition bar some light pitting on the sole. All the components have been thoroughly cleaned and move freely. Note: Stanley only produced this model (Type 1) between 1877 and 1880 when they added four holes to the side wheel adjuster (Type 2) which ran until 1891.

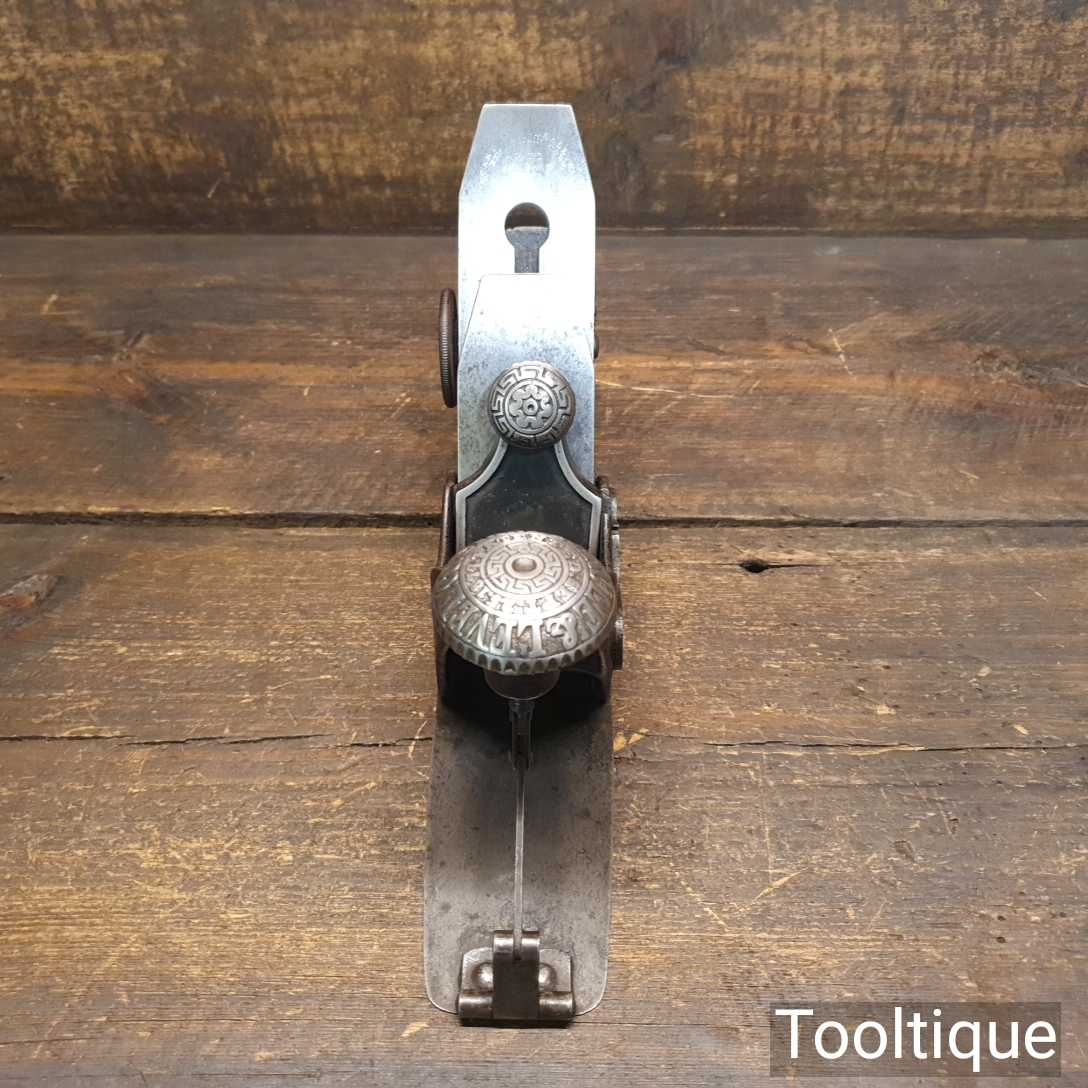

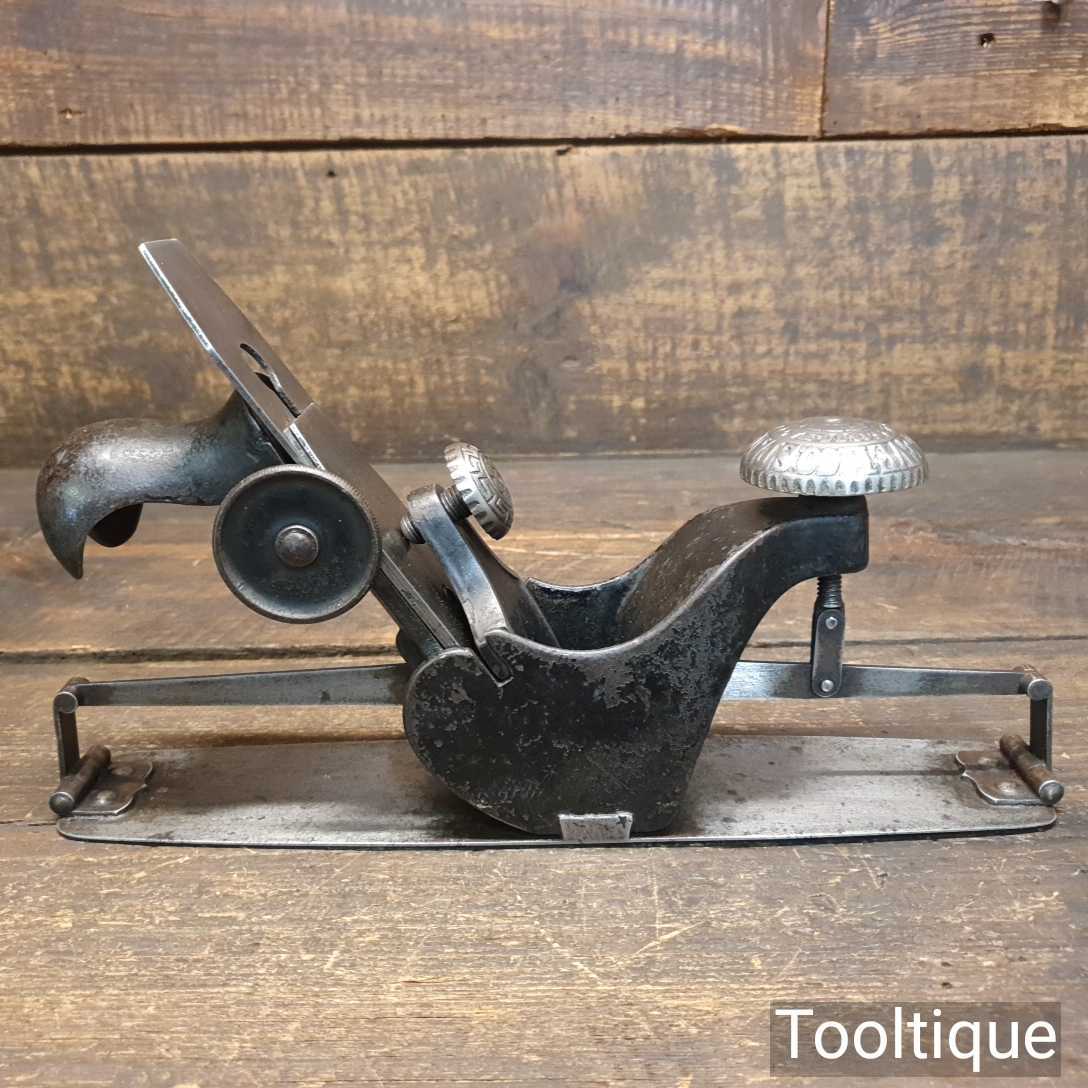

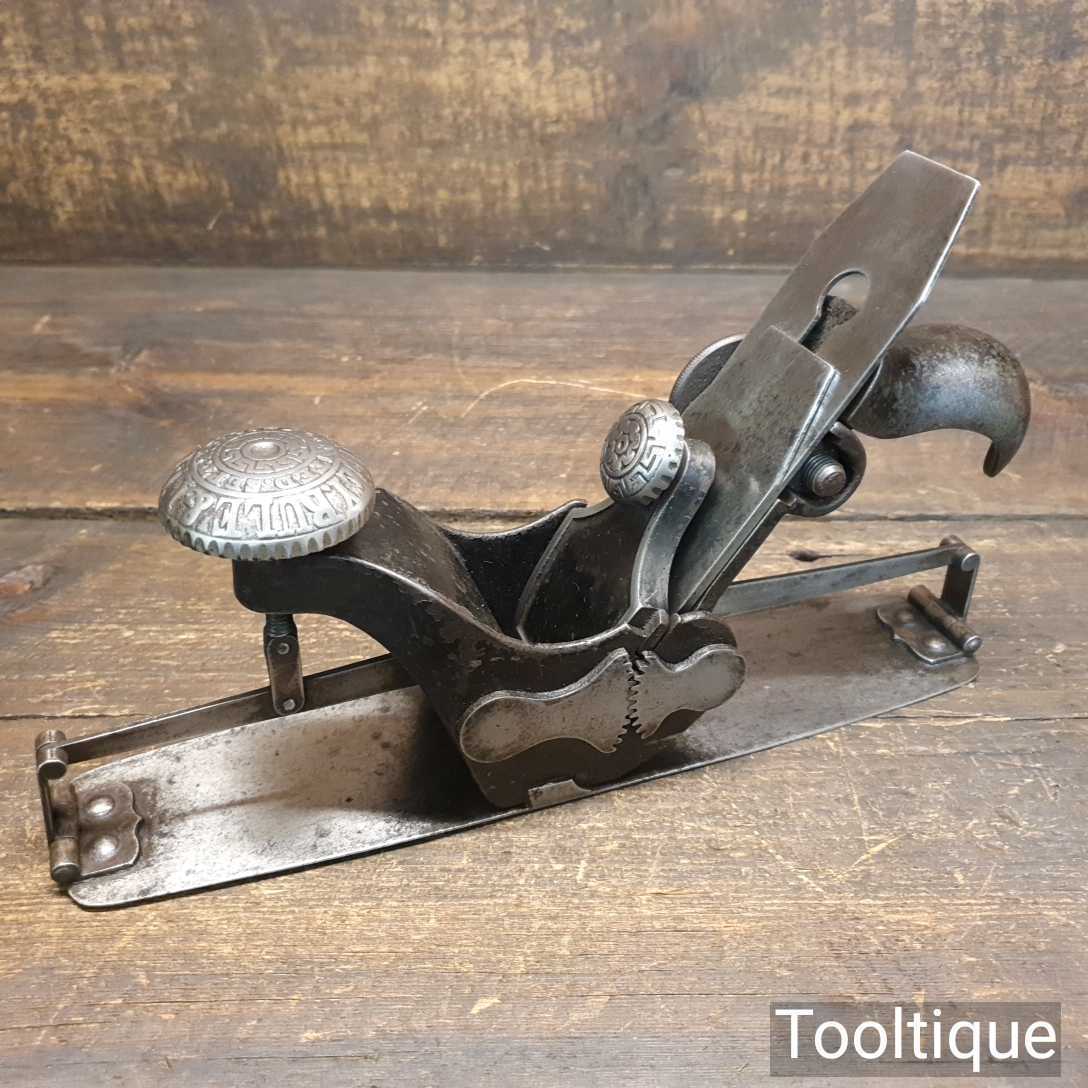

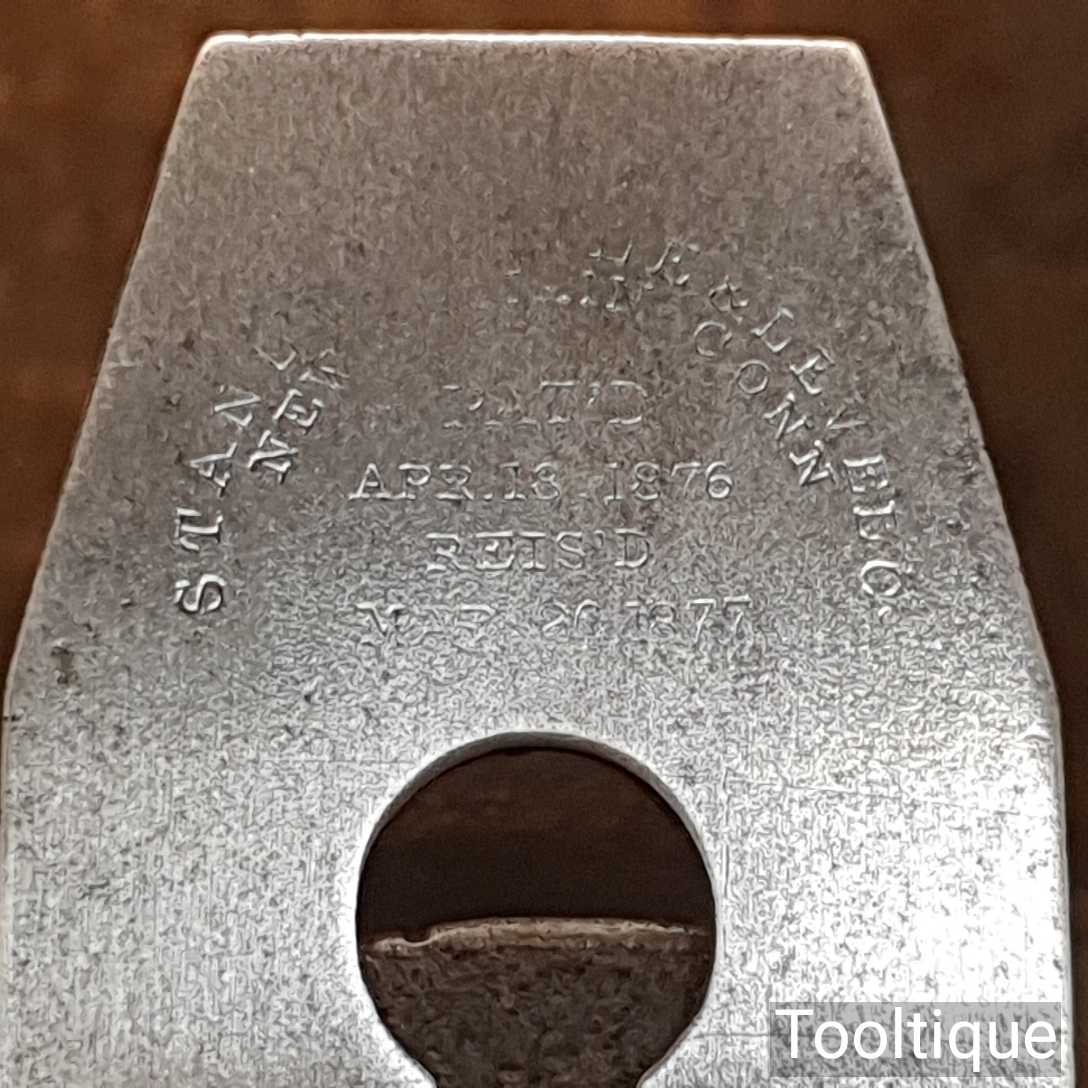

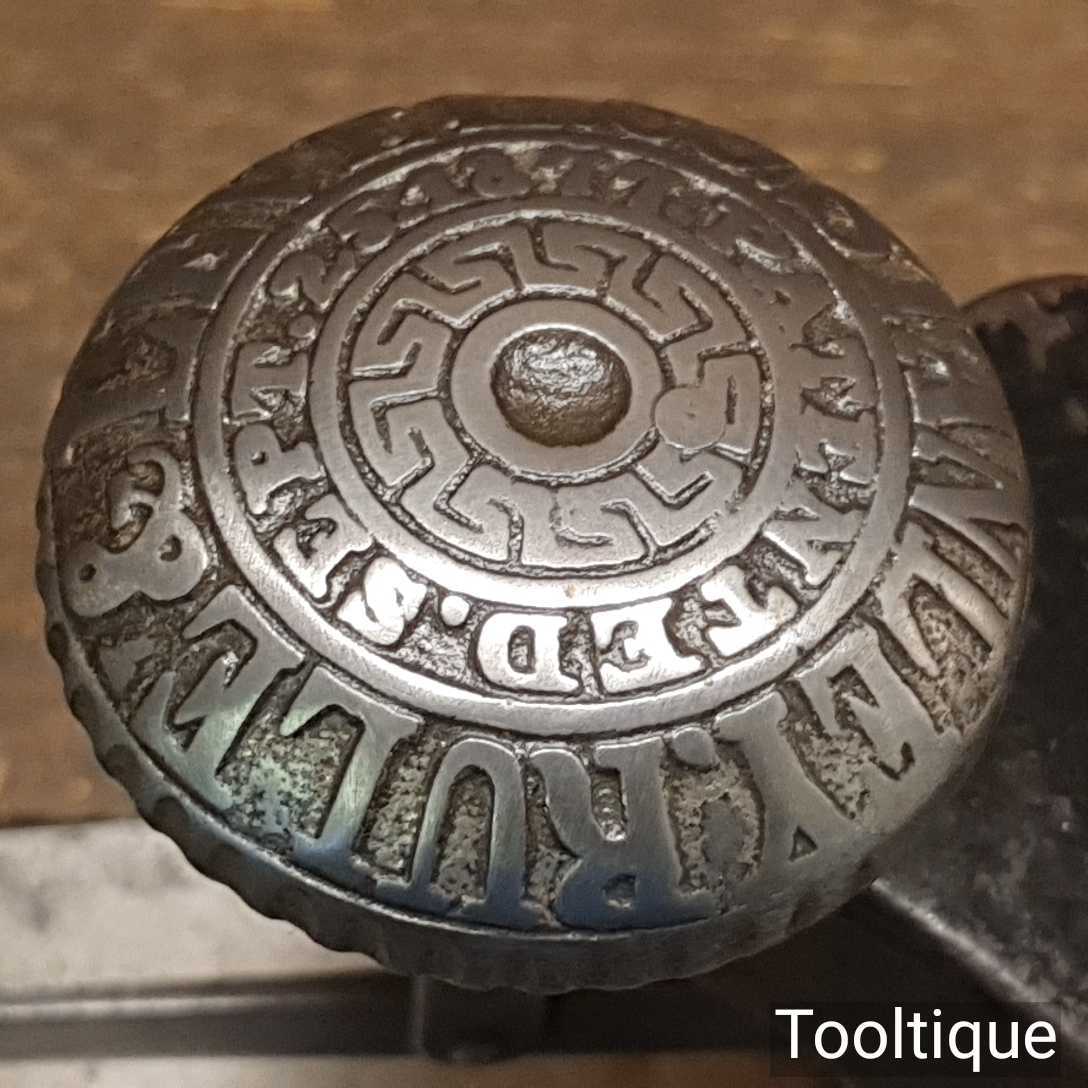

Type 1 – (1877 to 1880) Has an ornate front knob with “Stanley Rule Level Co.” and “Patented September 25,1877 in a circular border. The cutter is stamped “Stanley Rule & Level Co., New Britain, CT” and “Pat’d April 18,1876” and “Regs’d Mar. 20, 1877.” Screw down lever cap with fancy cap screw. The cutter has a special two-piece screw to join it with the cap iron. This special screw fits into a cutter adjustment with two apertures. The cutter adjustment wheel on the side of the plane is solid and has a japanned finish. The two small pieces of steel that are hinged and riveted to the front and back of the flexible sole are pointed toward the centre of the plane resembling the shape of a shield. Sargent’s 6/17/1879 patent date is stamped on the dovetailed lug attaching the sole to the body of the plane.
